Our Main Products

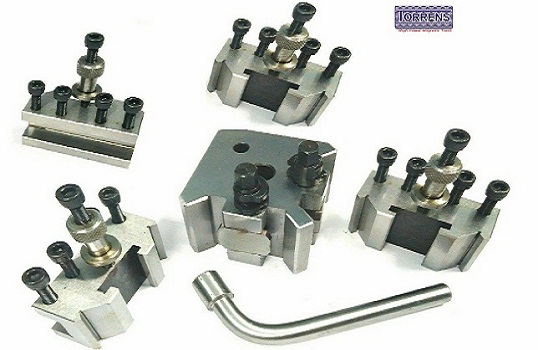

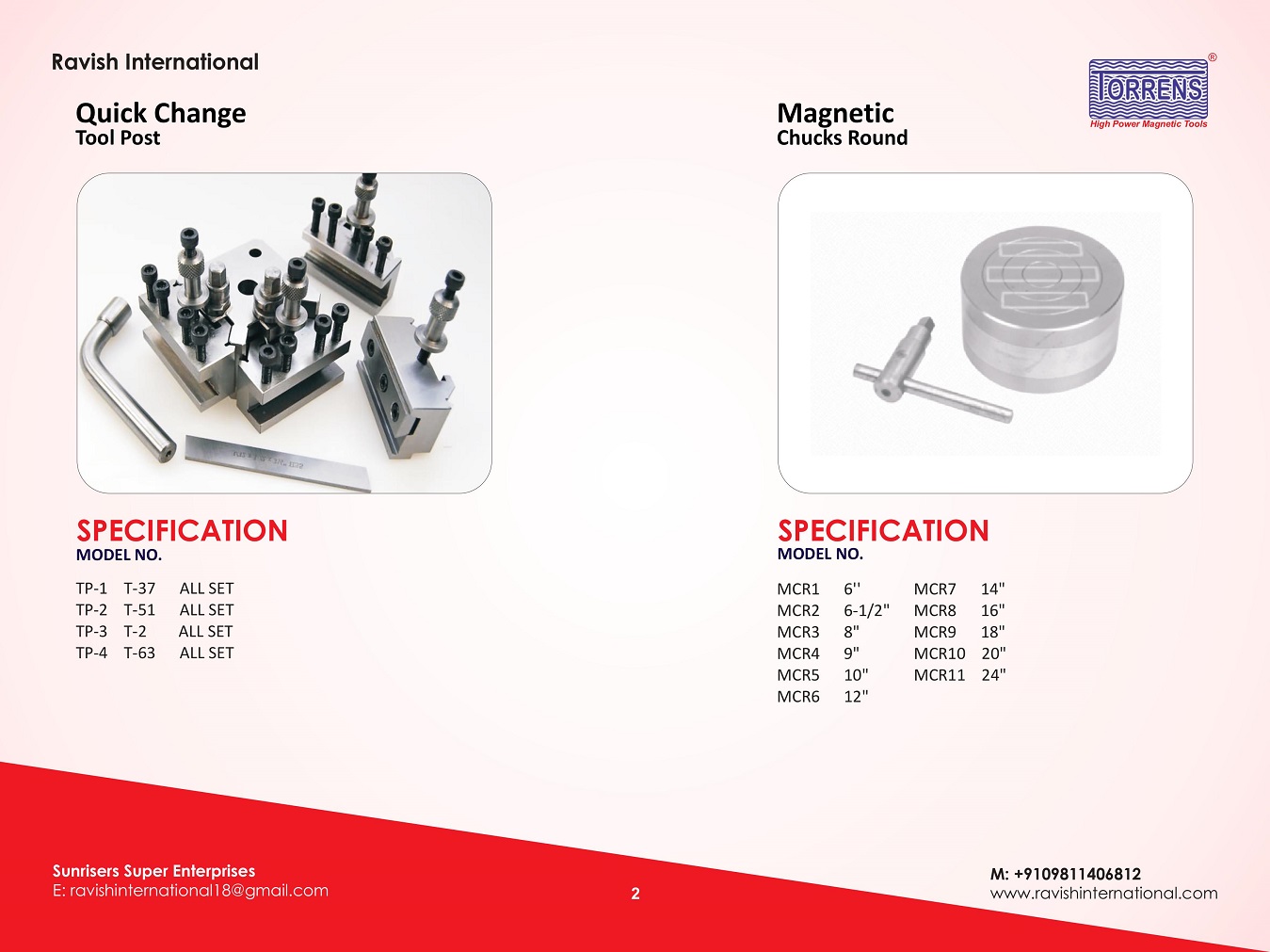

QUICK CHANGE TOOL POST

Description : 5 Pieces Set Quick Change Toolpost 10mm Lathe T37

* Premium Quality Quick change Tool Post for lathes
* All parts hardened and precisely ground.
* Main Block Size is 58 x 58 x 40 mm high with a 10 mm Stud Bore.
* Set comes complete with 3 standard holders + 1 Boring Vee Holder and 1 Hex Spanner + 1 allen key
* Tool capacity upto 13mm approx.

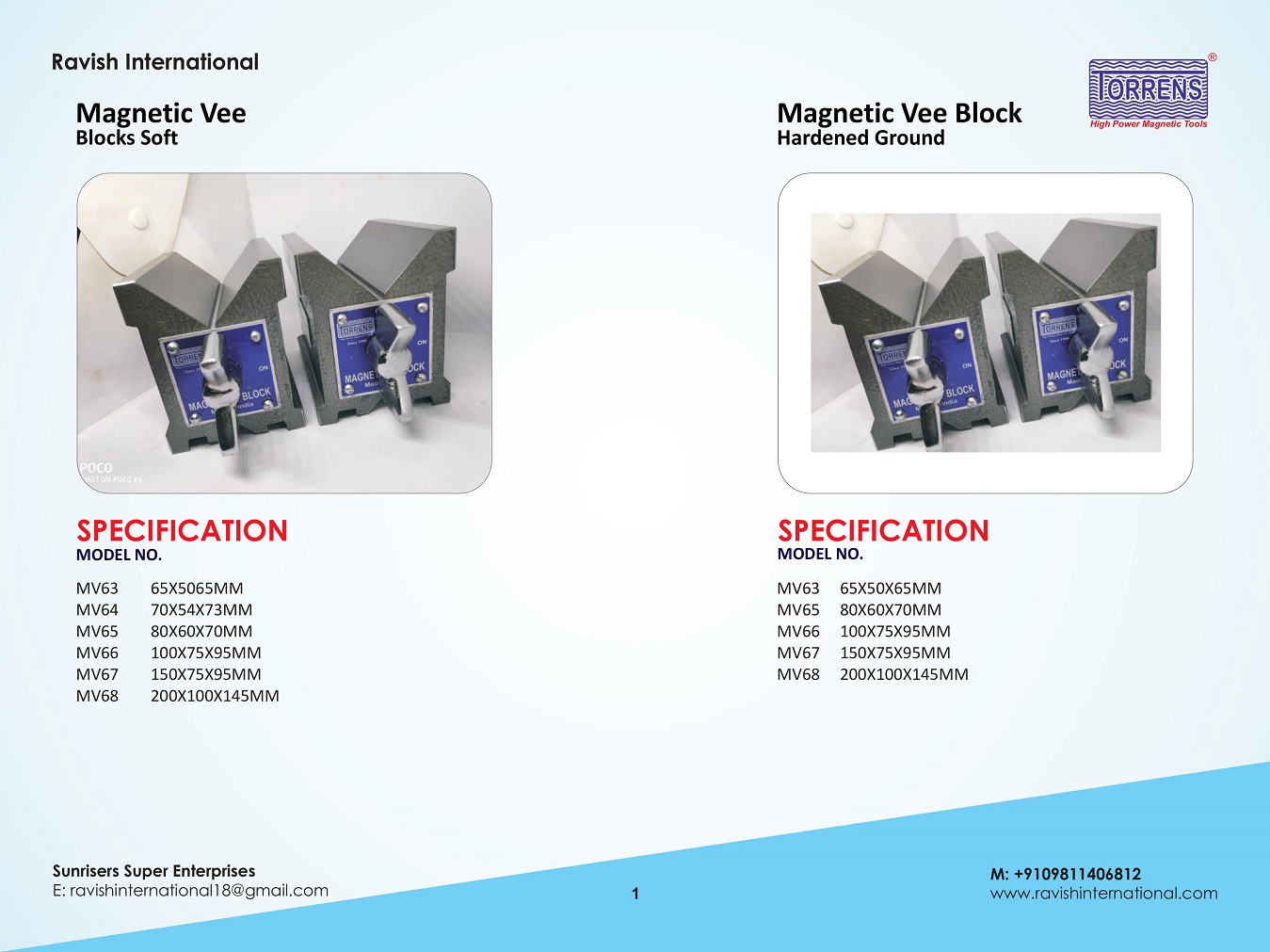

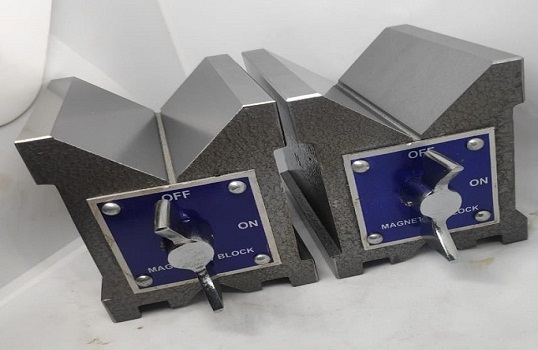

MAGNETIC V BLOCK

Size Matched Pair 65 x 55 x 50mm, DESCRIPTION : -Fully sealed and Solid steel made. -High and constant magnetic pull. -Holds cylindrical pieces effectively. -Protected against use of coolants. -Consists of two vees. -Supplied in single piece/matched pairs. -Easy On-Off facility PRODUCT SPECIFICATION : Designed for versatility and accuracy, these Vee Blocks are ideal for holding round or irregular shapes for scribing, grinding, measuring, machining and testing applications. All vee’s and faces can be energized or de-energised simultaneously by turning the rotary action control knob. Hence enabling it to hold itself and the work against any flat Ferrous surface. Magnetic Vee Block is an indispensable item of equipment for tool rooms and production departments. Having 3 contact faces, all magnetized at the same time, it will hold itself and will work on any flat ferrous surface. The use of coolants will not effect this Vee Block as it is fully sealed. Vee Blocks are required for quality control, tool room and standard room. These are used for grinding and drilling work and even for light milling work. It can be used on machines fitted with Magnetic Chucks, in such cases there is no need to switch ‘ON’ the chuck. It is sometimes advantageous to use two magnetic Vee Blocks at a time. For such duty, order a matched pair.

* Premium Quality Quick change Tool Post for lathes
* All parts hardened and precisely ground.
* Main Block Size is 58 x 58 x 40 mm high with a 10 mm Stud Bore.
* Set comes complete with 3 standard holders + 1 Boring Vee Holder and 1 Hex Spanner + 1 allen key
* Tool capacity upto 13mm approx.

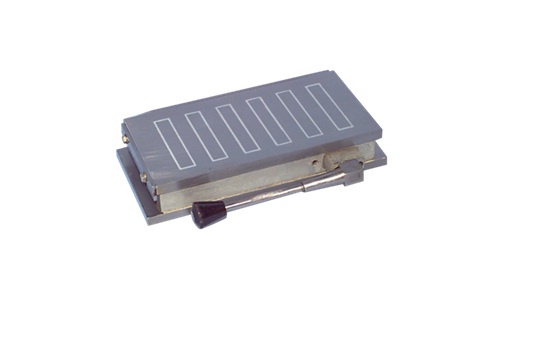

PERMANENT MAGNETIC CHUCK RECTANGULAR

Description :

chucks cannot lose their magnetism, which will remain permanent indefinitely. Loss of performance is generally due to condition of work-holding surface, never to demagnetism. In case of mechanical fault some time caused by lack of lubrication the user should obtain our advice and should never dismantle the chuck. It is a reliable, permanent and an inexpensive source since it does not require electrical supply which means no running costs and no installation charges are involved. Best quality magnets are used in these chucks. Pole spacing is carefully selected to cover the widest range of work pieces on the upper plate. All like poles are connected to ensure the most effective hold on single work pieces or on partial plates.

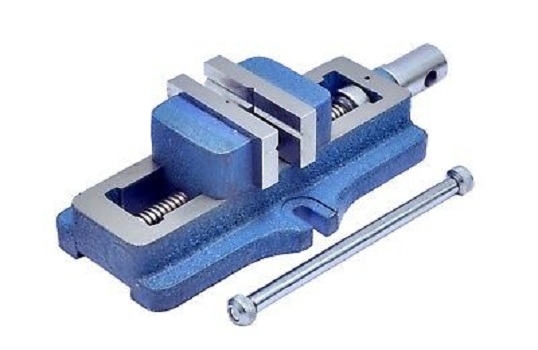

SELF CENTERING VICE

* Moving jaws automatically center the work piece.
* Ideal for a fixed table machine, for instance a drilling machine.
* Vice is very useful on medium to large mills.
* Once the vice is located the work piece will be centered every time.
* Size: 2”,3"4”

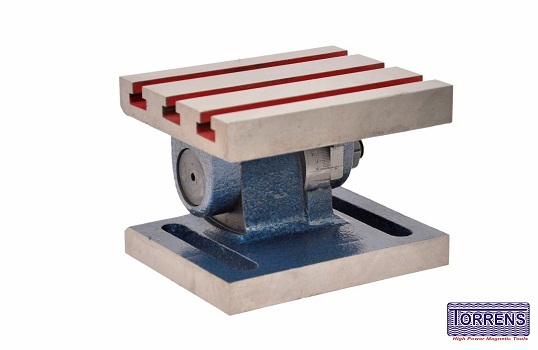

ADJUSTABLE SWIVEL ANGLE PLATE

Description : Swivel Angle Plate 5x6"

* Table size: 5"x6" (128x154mm).
* Height: 4.5" (115mm).
* T-Slot Size: 12mm wide - 40mm between T-slot centres.
* Swivels 0-90° (horizontal to vertical)

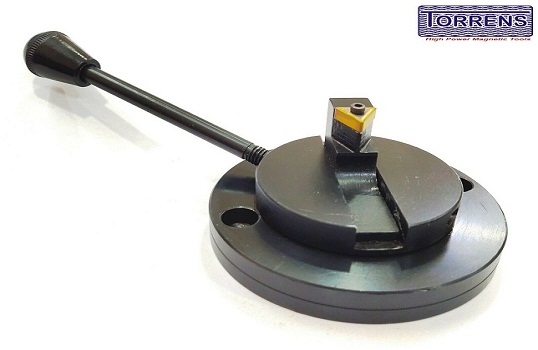

BALL TURNING ATTACHMENT

A ball turning attachment is really just a mechanism that cause the cutting edge to follow a circular path which is the outside of the ball being cut. The cutting edge can turn in the horizontal plane or it can turn in a vertical plane lying along the axis of the lathe.

* This fits straight onto the cross slide of your lathe machine for Quick Turning of Cones and Balls.
* Comes with a 1 Index able TNMG16 Insert for best turning finish and results.
* Maximum Ball Diameter possible is 38 mm.
* The Head can be adjusted for different Ball Sizes.
